JAVA中的SPI实现原理

发布于 2个月前
 608 热度

 0 评论

山有木兮
1 粉丝 45 篇博客

简介

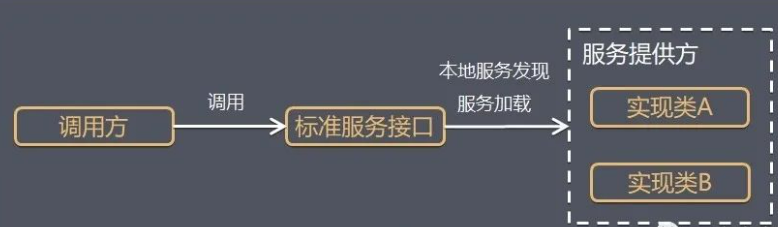

SPI(Service Provider Interface)是JDK内置的一种服务提供发现机制，可以用来启用框架扩展和替换组件,主要用于框架中开发，例如Dubbo、Spring、Common-Logging，JDBC等都是采用SPI机制，针对同一接口采用不同的实现提供给不同的用户，从而提高了框架的扩展性。

Java SPI实现
Java内置的SPI通过java.util.ServiceLoader类解析classPath和jar包的META-INF/services/目录下的以接口全限定名命名的文件，并加载该文件中指定的接口实现类，以此完成调用

源码分析

其实现原理是ServiceLoader是Java内置的用于查找服务提供接口的工具类，通过调用load()方法实现对服务提供接口的查找，最后遍历来逐个访问服务提供接口的实现类。ServiceLoader类本身实现了Iterable接口并实现了其中的iterator方法，iterator方法的实现中调用了LazyIterator这个内部类中的方法，迭代器创建实例。所有服务提供接口的对应文件都是放置在META-INF/services/目录下，final类型决定了PREFIX目录不可变更。

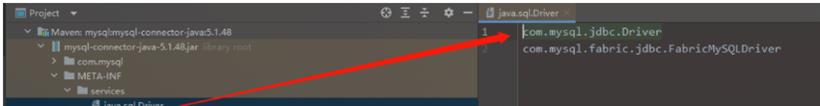

以mysql为例，实现类是com.mysql.jdbc.Driver，在mysql-connector-java-5.1.48.jar中，我们可以看到有一个META-INF/services目录，目录下有一个文件名为java.sql.Driver的文件，其中的内容是com.mysql.jdbc.Driver

在我们使用JDBC获取连接时，我们通常会调用DriverManager.getConnection()方法获取连接对象，而在Driver类初始化时会使用ServiceLoader动态获取classpath下注册的驱动实现：

static {
        loadInitialDrivers();
        println("JDBC DriverManager initialized");
}
// 堆代码 duidaima.com
private static void loadInitialDrivers() {
        .....
        AccessController.doPrivileged(new PrivilegedAction<Void>() {
            public Void run() {
            //使用ServiceLoader动态加载具体的驱动实现类
                ServiceLoader<Driver> loadedDrivers = ServiceLoader.load(Driver.class);
                Iterator<Driver> driversIterator = loadedDrivers.iterator();
                try{
                    while(driversIterator.hasNext()) {
                        driversIterator.next();
                    }
                } catch(Throwable t) {
                // Do nothing
                }
                return null;
            }
        });
  .....
    }

Spring SPI
Spring SPI沿用了Java SPI的设计思想，Spring采用的是spring.factories方式实现SPI机制，可以在不修改Spring源码的前提下，提供Spring框架的扩展性。Java SPI是一个服务提供接口对应一个配置文件，配置文件中存放当前接口的所有实现类，多个服务提供接口对应多个配置文件，所有配置都在services目录下。

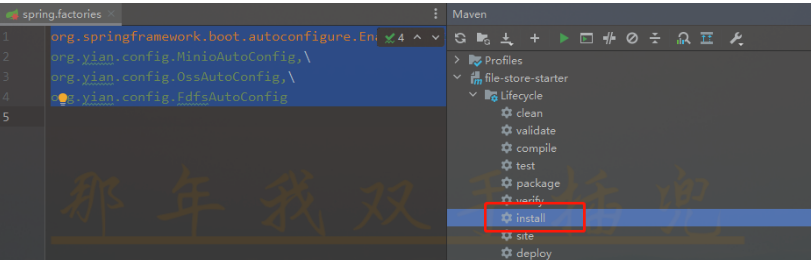

Spring SPI是一个spring.factories配置文件存放多个接口及对应的实现类，以接口全限定名作为key，实现类作为value来配置，多个实现类用逗号隔开，仅spring.factories一个配置文件。
那么spring是如何通过加载spring.factories来实现SpI的呢?我们可以通过源码来进一步分析

public final class SpringFactoriesLoader {

    /**
     * 堆代码 duidaima.com
     * The location to look for factories.
     * <p>Can be present in multiple JAR files.
     */
    public static final String FACTORIES_RESOURCE_LOCATION = "META-INF/spring.factories";


    private static final Log logger = LogFactory.getLog(SpringFactoriesLoader.class);

    private static final Map < ClassLoader, MultiValueMap < String, String >> cache = new ConcurrentReferenceHashMap < > ();

    private SpringFactoriesLoader() {}


    /**
     * Load and instantiate the factory implementations of the given type from
     * {@value #FACTORIES_RESOURCE_LOCATION}, using the given class loader.
     * <p>The returned factories are sorted through {@link AnnotationAwareOrderComparator}.
     * <p>If a custom instantiation strategy is required, use {@link #loadFactoryNames}
     * to obtain all registered factory names.
     * @param factoryClass the interface or abstract class representing the factory
     * @param classLoader the ClassLoader to use for loading (can be {@code null} to use the default)
     * @throws IllegalArgumentException if any factory implementation class cannot
     * be loaded or if an error occurs while instantiating any factory
     * @see #loadFactoryNames
     */
    public static < T > List < T > loadFactories(Class < T > factoryClass, @Nullable ClassLoader classLoader) {
        Assert.notNull(factoryClass, "'factoryClass' must not be null");
        ClassLoader classLoaderToUse = classLoader;
        if (classLoaderToUse == null) {
            classLoaderToUse = SpringFactoriesLoader.class.getClassLoader();
        }
        List < String > factoryNames = loadFactoryNames(factoryClass, classLoaderToUse);
        if (logger.isTraceEnabled()) {
            logger.trace("Loaded [" + factoryClass.getName() + "] names: " + factoryNames);
        }
        List < T > result = new ArrayList < > (factoryNames.size());
        for (String factoryName: factoryNames) {
            result.add(instantiateFactory(factoryName, factoryClass, classLoaderToUse));
        }
        AnnotationAwareOrderComparator.sort(result);
        return result;
    }

    /**
     * Load the fully qualified class names of factory implementations of the
     * given type from {@value #FACTORIES_RESOURCE_LOCATION}, using the given
     * class loader.
     * @param factoryClass the interface or abstract class representing the factory
     * @param classLoader the ClassLoader to use for loading resources; can be
     * {@code null} to use the default
     * @throws IllegalArgumentException if an error occurs while loading factory names
     * @see #loadFactories
     */
    public static List < String > loadFactoryNames(Class <? > factoryClass, @Nullable ClassLoader classLoader) {
        String factoryClassName = factoryClass.getName();
        return loadSpringFactories(classLoader).getOrDefault(factoryClassName, Collections.emptyList());
    }

    private static Map < String, List < String >> loadSpringFactories(@Nullable ClassLoader classLoader) {
        MultiValueMap < String, String > result = cache.get(classLoader);
        if (result != null) {
            return result;
        }

        try {
            Enumeration < URL > urls = (classLoader != null ?
                classLoader.getResources(FACTORIES_RESOURCE_LOCATION) :
                ClassLoader.getSystemResources(FACTORIES_RESOURCE_LOCATION));
            result = new LinkedMultiValueMap < > ();
            while (urls.hasMoreElements()) {
                URL url = urls.nextElement();
                UrlResource resource = new UrlResource(url);
                Properties properties = PropertiesLoaderUtils.loadProperties(resource);
                for (Map.Entry <? , ?> entry: properties.entrySet()) {
                    String factoryClassName = ((String) entry.getKey()).trim();
                    for (String factoryName: StringUtils.commaDelimitedListToStringArray((String) entry.getValue())) {
                        result.add(factoryClassName, factoryName.trim());
                    }
                }
            }
            cache.put(classLoader, result);
            return result;
        } catch (IOException ex) {
            throw new IllegalArgumentException("Unable to load factories from location [" +
                FACTORIES_RESOURCE_LOCATION + "]", ex);
        }
    }

    @
    SuppressWarnings("unchecked")
    private static < T > T instantiateFactory(String instanceClassName, Class < T > factoryClass, ClassLoader classLoader) {
        try {
            Class <? > instanceClass = ClassUtils.forName(instanceClassName, classLoader);
            if (!factoryClass.isAssignableFrom(instanceClass)) {
                throw new IllegalArgumentException(
                    "Class [" + instanceClassName + "] is not assignable to [" + factoryClass.getName() + "]");
            }
            return (T) ReflectionUtils.accessibleConstructor(instanceClass).newInstance();
        } catch (Throwable ex) {
            throw new IllegalArgumentException("Unable to instantiate factory class: " + factoryClass.getName(), ex);
        }
    }

}

loadFactoryNames()：解析spring.factories文件中指定接口的实现类的全限定名
loadSpringFactories()：获取所有jar包中META-INF/spring.factories文件路径，以枚举值返回，遍历spring.factories文件路径，逐个加载解析，整合factoryClass类型的实现类名称，获取到实现类的全类名称后进行类的实例化操作

instantiateFactory()：实例化是通过反射来实现对应的初始化

如何实现自定义starter
如果想自定义Starter，首选需要实现自动化配置，而要实现自动化配置需要满足以下两个条件：
1.能够自动配置项目所需要的配置信息，也就是自动加载依赖环境；
2.能够根据项目提供的信息自动生成Bean，并且注册到Bean管理容器中；

建一个maven项目

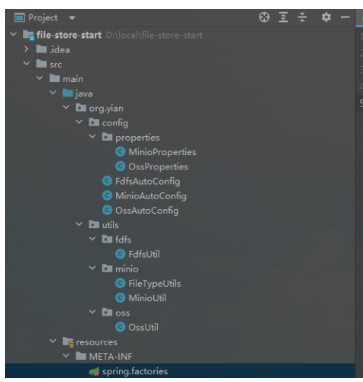

本次案例以Minio，OSS以及Fastdfs上传下载文件为基础，springboot版本2.2.1.RELEASE，目录结构如下：

引入pom依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.yian</groupId>
    <artifactId>file-store-starter</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
        <spring-boot.version>2.2.1.RELEASE</spring-boot.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <version>${spring-boot.version}</version>
        </dependency>
        <dependency>
            <groupId>io.minio</groupId>
            <artifactId>minio</artifactId>
            <version>8.2.1</version>
        </dependency>
        <dependency>
            <groupId>com.aliyun.oss</groupId>
            <artifactId>aliyun-sdk-oss</artifactId>
            <version>3.10.2</version>
        </dependency>
        <dependency>
            <groupId>com.github.tobato</groupId>
            <artifactId>fastdfs-client</artifactId>
            <version>1.26.7</version>
        </dependency>
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
        </dependency>
        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
            <version>5.6.5</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-configuration-processor</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-autoconfigure</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
    </dependencies>

    <dependencyManagement>
        <dependencies>
            <!-- spring boot 版本控制 -->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>${spring-boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <version>${spring-boot.version}</version>
                <configuration>
                   <!--解决maven install 生成jar含有BOOT-INF ，导致被其他工程依赖时找不到类-->
                    <skip>true</skip>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

定义properties
MinioProperties：

package org.yian.config.properties;

import io.minio.MinioClient;
import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
* @author: duidaima.com
* @create: 2023/3/13
**/

@Data
@Configuration
@ConfigurationProperties(prefix = "minio")
public class MinioProperties {

    /**
     * 是一个URL，域名，IPv4或者IPv6地址
     */
    private String endpoint;

    /**
     *     TCP/IP端口号
     */
    private Integer port;

    /**
     *     accessKey类似于用户ID，用于唯一标识你的账户
     */
    private String accessKey;

    /**
     *     secretKey是你账户的密码
     */
    private String secretKey;

    /**
     *     如果是true，则用的是https而不是http,默认值是true
     */
    private boolean secure;

    /**
     *     默认存储桶
     */
    private String bucketName;

    /**
     * 图片的最大大小
     */
    private long imageSize;

    /**
     * 其他文件的最大大小
     */
    private long fileSize;

}

OssProperties：

package org.yian.config.properties;

import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Configuration;

/**
* @author: duidaima.com
* @create: 2023/3/13
**/

@Data
@Configuration
@ConfigurationProperties(prefix = "oss")
public class OssProperties {
    private String accessKey;
    private String secret;
    private String bucketName;
    private String endpoint;
}

工具类
MinioUtil：

package org.yian.utils.minio;

import io.minio.*;
import io.minio.http.Method;
import io.minio.messages.Bucket;
import io.minio.messages.DeleteError;
import io.minio.messages.DeleteObject;
import io.minio.messages.Item;
import lombok.SneakyThrows;
import org.springframework.web.multipart.MultipartFile;
import org.yian.config.properties.MinioProperties;

import java.io.ByteArrayInputStream;
import java.io.InputStream;
import java.util.ArrayList;
import java.util.LinkedList;
import java.util.List;
import java.util.concurrent.TimeUnit;

/**
* @author: 堆代码
* @create: 2023/3/13
**/
public class MinioUtil {

    private final MinioClient minioClient;
    private final MinioProperties minioProperties;

    public MinioUtil(MinioClient minioClient, MinioProperties minioProperties) {
        this.minioClient = minioClient;
        this.minioProperties = minioProperties;
    }

    /**
     * 检查存储桶是否存在
     *
     * @param bucketName 存储桶名称
     * @return
     */
    @SneakyThrows
    public boolean bucketExists(String bucketName) {
        boolean found =
                minioClient.bucketExists(BucketExistsArgs.builder().bucket(bucketName).build());
        if (found) {
            System.out.println(bucketName + " exists");
        } else {
            System.out.println(bucketName + " does not exist");
        }
        return found;
    }

    /**
     * 创建存储桶
     *
     * @param bucketName 存储桶名称
     */
    @SneakyThrows
    public boolean makeBucket(String bucketName) {
        boolean flag = bucketExists(bucketName);
        if (!flag) {
            minioClient.makeBucket(
                    MakeBucketArgs.builder()
                            .bucket(bucketName)
                            .build());
            return true;
        } else {
            return false;
        }
    }

    /**
     * 列出所有存储桶名称
     *
     * @return
     */
    @SneakyThrows
    public List<String> listBucketNames() {
        List<Bucket> bucketList = listBuckets();
        List<String> bucketListName = new ArrayList<>();
        for (Bucket bucket : bucketList) {
            bucketListName.add(bucket.name());
        }
        return bucketListName;
    }

    /**
     * 列出所有存储桶
     *
     * @return
     */
    @SneakyThrows
    public List<Bucket> listBuckets() {
        return minioClient.listBuckets();
    }


    /**
     * 删除存储桶
     *
     * @param bucketName 存储桶名称
     * @return
     */
    @SneakyThrows
    public boolean removeBucket(String bucketName) {
        boolean flag = bucketExists(bucketName);
        if (flag) {
            Iterable<Result<Item>> myObjects = listObjects(bucketName);
            for (Result<Item> result : myObjects) {
                Item item = result.get();
                // 有对象文件，则删除失败
                if (item.size() > 0) {
                    return false;
                }
            }
            // 删除存储桶，注意，只有存储桶为空时才能删除成功。
            minioClient.removeBucket(RemoveBucketArgs.builder().bucket(bucketName).build());
            flag = bucketExists(bucketName);
            if (!flag) {
                return true;
            }
        }
        return false;
    }

    /**
     * 列出存储桶中的所有对象名称
     *
     * @param bucketName 存储桶名称
     * @return
     */
    @SneakyThrows
    public List<String> listObjectNames(String bucketName) {
        List<String> listObjectNames = new ArrayList<>();
        boolean flag = bucketExists(bucketName);
        if (flag) {
            Iterable<Result<Item>> myObjects = listObjects(bucketName);
            for (Result<Item> result : myObjects) {
                Item item = result.get();
                listObjectNames.add(item.objectName());
            }
        }else{
            listObjectNames.add("存储桶不存在");
        }
        return listObjectNames;
    }


    /**
     * 列出存储桶中的所有对象
     *
     * @param bucketName 存储桶名称
     * @return
     */
    @SneakyThrows
    public Iterable<Result<Item>> listObjects(String bucketName) {
        boolean flag = bucketExists(bucketName);
        if (flag) {
            return minioClient.listObjects(
                    ListObjectsArgs.builder().bucket(bucketName).build());
        }
        return null;
    }

    /**
     * 文件上传
     *
     * @param bucketName
     * @param multipartFile
     */
    @SneakyThrows
    public void putObject(String bucketName, MultipartFile multipartFile, String filename, String fileType) {
        InputStream inputStream = new ByteArrayInputStream(multipartFile.getBytes());
        minioClient.putObject(
                PutObjectArgs.builder().bucket(bucketName).object(filename).stream(
                                inputStream, -1, minioProperties.getFileSize())
                        .contentType(fileType)
                        .build());
    }


    /**
     * 文件访问路径
     *
     * @param bucketName 存储桶名称
     * @param objectName 存储桶里的对象名称
     * @return
     */
    @SneakyThrows
    public String getObjectUrl(String bucketName, String objectName) {
        boolean flag = bucketExists(bucketName);
        String url = "";
        if (flag) {
            url = minioClient.getPresignedObjectUrl(
                    GetPresignedObjectUrlArgs.builder()
                            .method(Method.GET)
                            .bucket(bucketName)
                            .object(objectName)
                            .expiry(2, TimeUnit.MINUTES)
                            .build());
            System.out.println(url);
        }
        return url;
    }


    /**
     * 删除一个对象
     *
     * @param bucketName 存储桶名称
     * @param objectName 存储桶里的对象名称
     */
    @SneakyThrows
    public boolean removeObject(String bucketName, String objectName) {
        boolean flag = bucketExists(bucketName);
        if (flag) {
            minioClient.removeObject(
                    RemoveObjectArgs.builder().bucket(bucketName).object(objectName).build());
            return true;
        }
        return false;
    }

    /**
     * 以流的形式获取一个文件对象
     *
     * @param bucketName 存储桶名称
     * @param objectName 存储桶里的对象名称
     * @return
     */
    @SneakyThrows
    public InputStream getObject(String bucketName, String objectName) {
        boolean flag = bucketExists(bucketName);
        if (flag) {
            StatObjectResponse statObject = statObject(bucketName, objectName);
            if (statObject != null && statObject.size() > 0) {
                InputStream stream =
                        minioClient.getObject(
                                GetObjectArgs.builder()
                                        .bucket(bucketName)
                                        .object(objectName)
                                        .build());
                return stream;
            }
        }
        return null;
    }

    /**
     * 获取对象的元数据
     *
     * @param bucketName 存储桶名称
     * @param objectName 存储桶里的对象名称
     * @return
     */
    @SneakyThrows
    public StatObjectResponse statObject(String bucketName, String objectName) {
        boolean flag = bucketExists(bucketName);
        if (flag) {
            StatObjectResponse stat =
                    minioClient.statObject(
                            StatObjectArgs.builder().bucket(bucketName).object(objectName).build());
            return stat;
        }
        return null;
    }

    /**
     * 删除指定桶的多个文件对象,返回删除错误的对象列表，全部删除成功，返回空列表
     *
     * @param bucketName  存储桶名称
     * @param objectNames 含有要删除的多个object名称的迭代器对象
     * @return
     */
    @SneakyThrows
    public boolean removeObject(String bucketName, List<String> objectNames) {
        boolean flag = bucketExists(bucketName);
        if (flag) {
            List<DeleteObject> objects = new LinkedList<>();
            for (int i = 0; i < objectNames.size(); i++) {
                objects.add(new DeleteObject(objectNames.get(i)));
            }
            Iterable<Result<DeleteError>> results =
                    minioClient.removeObjects(
                            RemoveObjectsArgs.builder().bucket(bucketName).objects(objects).build());
            for (Result<DeleteError> result : results) {
                DeleteError error = result.get();
                System.out.println(
                        "Error in deleting object " + error.objectName() + "; " + error.message());
                return false;
            }
        }
        return true;
    }

    /**
     * 以流的形式获取一个文件对象（断点下载）
     *
     * @param bucketName 存储桶名称
     * @param objectName 存储桶里的对象名称
     * @param offset     起始字节的位置
     * @param length     要读取的长度 (可选，如果无值则代表读到文件结尾)
     * @return
     */
    @SneakyThrows
    public InputStream getObject(String bucketName, String objectName, long offset, Long length) {
        boolean flag = bucketExists(bucketName);
        if (flag) {
            StatObjectResponse statObject = statObject(bucketName, objectName);
            if (statObject != null && statObject.size() > 0) {
                InputStream stream =
                        minioClient.getObject(
                                GetObjectArgs.builder()
                                        .bucket(bucketName)
                                        .object(objectName)
                                        .offset(offset)
                                        .length(length)
                                        .build());
                return stream;
            }
        }
        return null;
    }


    /**
     * 通过InputStream上传对象
     *
     * @param bucketName 存储桶名称
     * @param objectName 存储桶里的对象名称
     * @param inputStream     要上传的流
     * @param contentType     要上传的文件类型 MimeTypeUtils.IMAGE_JPEG_VALUE
     * @return
     */
    @SneakyThrows
    public boolean putObject(String bucketName, String objectName, InputStream inputStream, String contentType) {
        boolean flag = bucketExists(bucketName);
        if (flag) {
            minioClient.putObject(
                    PutObjectArgs.builder().bucket(bucketName).object(objectName).stream(
                                    inputStream, -1, minioProperties.getFileSize())
                            .contentType(contentType)
                            .build());
            StatObjectResponse statObject = statObject(bucketName, objectName);
            if (statObject != null && statObject.size() > 0) {
                return true;
            }
        }
        return false;
    }
}

FileTypeUtils：

package org.yian.utils.minio;

import cn.hutool.core.io.FileTypeUtil;
import org.springframework.web.multipart.MultipartFile;

import java.io.IOException;
import java.io.InputStream;
/**
 * @author: duidaima.com
 * @create: 2023/3/13
 **/
public class FileTypeUtils {

    private final static String IMAGE_TYPE = "image/";
    private final static String AUDIO_TYPE = "audio/";
    private final static String VIDEO_TYPE = "video/";
    private final static String APPLICATION_TYPE = "application/";
    private final static String TXT_TYPE = "text/";

    public static String getFileType(MultipartFile multipartFile) {
        InputStream inputStream = null;
        String type = null;
        try {
            inputStream = multipartFile.getInputStream();
            type = FileTypeUtil.getType(inputStream,multipartFile.getOriginalFilename());
            if (type.equalsIgnoreCase("JPG") || type.equalsIgnoreCase("JPEG")
                    || type.equalsIgnoreCase("GIF") || type.equalsIgnoreCase("PNG")
                    || type.equalsIgnoreCase("BMP") || type.equalsIgnoreCase("PCX")
                    || type.equalsIgnoreCase("TGA") || type.equalsIgnoreCase("PSD")
                    || type.equalsIgnoreCase("TIFF")) {
                return IMAGE_TYPE+type;
            }
            if (type.equalsIgnoreCase("mp3") || type.equalsIgnoreCase("OGG")
                    || type.equalsIgnoreCase("WAV") || type.equalsIgnoreCase("REAL")
                    || type.equalsIgnoreCase("APE") || type.equalsIgnoreCase("MODULE")
                    || type.equalsIgnoreCase("MIDI") || type.equalsIgnoreCase("VQF")
                    || type.equalsIgnoreCase("CD")) {
                return AUDIO_TYPE+type;
            }
            if (type.equalsIgnoreCase("mp4") || type.equalsIgnoreCase("avi")
                    || type.equalsIgnoreCase("MPEG-1") || type.equalsIgnoreCase("RM")
                    || type.equalsIgnoreCase("ASF") || type.equalsIgnoreCase("WMV")
                    || type.equalsIgnoreCase("qlv") || type.equalsIgnoreCase("MPEG-2")
                    || type.equalsIgnoreCase("MPEG4") || type.equalsIgnoreCase("mov")
                    || type.equalsIgnoreCase("3gp")) {
                return VIDEO_TYPE+type;
            }
            if (type.equalsIgnoreCase("doc") || type.equalsIgnoreCase("docx")
                    || type.equalsIgnoreCase("ppt") || type.equalsIgnoreCase("pptx")
                    || type.equalsIgnoreCase("xls") || type.equalsIgnoreCase("xlsx")
                    || type.equalsIgnoreCase("zip")||type.equalsIgnoreCase("jar")
                    ||type.equalsIgnoreCase("java")) {
                return APPLICATION_TYPE+type;
            }
            if (type.equalsIgnoreCase("txt")||type.equalsIgnoreCase("csv")) {
                return TXT_TYPE+type;
            }
        } catch (IOException e) {
            e.printStackTrace();
        }
        return null;
    }
}

OssUtil：

package org.yian.utils.oss;

import com.aliyun.oss.OSS;
import com.aliyun.oss.OSSClientBuilder;
import com.aliyun.oss.model.*;
import org.springframework.web.multipart.MultipartFile;

import java.io.*;
import java.net.URL;
import java.time.LocalDate;
import java.time.format.DateTimeFormatter;
import java.util.ArrayList;
import java.util.Date;
import java.util.List;
/**
* @author: duidaima.com
* @create: 2023/3/13
**/
public class OssUtil {

    private String endpoint;
    private String accessKeyId;
    private String accessKeySecret;
    private String bucketName;


    public OssUtil(String endpoint,String accessKeyId,String accessKeySecret,String bucketName){
        this.endpoint = endpoint;
        this.accessKeyId = accessKeyId;
        this.accessKeySecret = accessKeySecret;
        this.bucketName = bucketName;
    }





    /**
     * 将文件上传到阿里OSS
     *
     * @param sourceFilePathName 本地文件
     * @param aimFilePathName    在阿里OSS中保存的可以包含路径的文件名
     * @return 返回上传后文件的访问路径
     * @throws FileNotFoundException
     */
    public  String upload(String sourceFilePathName, String aimFilePathName) throws FileNotFoundException {
        FileInputStream is = new FileInputStream(sourceFilePathName);

        if (aimFilePathName.startsWith("/")) {
            aimFilePathName = aimFilePathName.substring(1);
        }

        // 如果需要上传时设置存储类型与访问权限，请参考以下示例代码。
        ObjectMetadata metadata = new ObjectMetadata();
        int indexOfLastDot = aimFilePathName.lastIndexOf(".");
        String suffix = aimFilePathName.substring(indexOfLastDot);
        metadata.setContentType(getContentType(suffix));

        //避免文件覆盖
        aimFilePathName = aimFilePathName.substring(0, indexOfLastDot) + System.currentTimeMillis() + suffix;

        PutObjectRequest putObjectRequest = new PutObjectRequest(bucketName, aimFilePathName, is);
        //避免访问时将图片下载下来
        putObjectRequest.setMetadata(metadata);

        OSS ossClient = new OSSClientBuilder().build(endpoint, accessKeyId, accessKeySecret);

        ossClient.putObject(putObjectRequest);

        Date expiration = new Date(System.currentTimeMillis() + 3600L * 1000 * 24 * 365 * 100);
        URL url = ossClient.generatePresignedUrl(bucketName, aimFilePathName, expiration);

        // 关闭ossClient
        ossClient.shutdown();

        return url.toString();
    }

    /**
     * 网络实现上传头像到OSS
     *
     * @param multipartFile
     * @return
     */
    public  String upload(MultipartFile multipartFile) throws IOException {
        // 获取上传的文件的输入流
        InputStream inputStream = multipartFile.getInputStream();
        // 获取文件名称
        String fileName = multipartFile.getOriginalFilename();

        // 避免文件覆盖
        int i = fileName.lastIndexOf(".");
        String suffix = fileName.substring(i);
        fileName = fileName.substring(0, i) + System.currentTimeMillis() + suffix;

        // 把文件按照日期进行分类
        // 获取当前日期
        String datePath = DateTimeFormatter.ISO_DATE.format(LocalDate.now());
        // 拼接fileName
        fileName = datePath + "/" + fileName;

        // 如果需要上传时设置存储类型与访问权限
        ObjectMetadata metadata = new ObjectMetadata();
        metadata.setContentType(getContentType(fileName.substring(fileName.lastIndexOf("."))));

        // 上传文件到OSS时需要指定包含文件后缀在内的完整路径，例如abc/efg/123.jpg。
        PutObjectRequest putObjectRequest = new PutObjectRequest(bucketName, fileName, inputStream);
        putObjectRequest.setMetadata(metadata);

        OSS ossClient = new OSSClientBuilder().build(endpoint, accessKeyId, accessKeySecret);

        ossClient.putObject(putObjectRequest);

        //文件访问路径
        Date expiration = new Date(System.currentTimeMillis() + 3600L * 1000 * 24 * 365 * 100);
        URL url = ossClient.generatePresignedUrl(bucketName, fileName, expiration);

        // 关闭ossClient
        ossClient.shutdown();
        // 把上传到oss的路径返回
        return url.toString();
    }

    /**
     * 返回contentType
     *
     * @param FileNameExtension
     * @return
     */
    private  String getContentType(String FileNameExtension) {
        if (FileNameExtension.equalsIgnoreCase(".bmp")) {
            return "image/bmp";
        }
        if (FileNameExtension.equalsIgnoreCase(".gif")) {
            return "image/gif";
        }
        if (FileNameExtension.equalsIgnoreCase(".jpeg") ||
                FileNameExtension.equalsIgnoreCase(".jpg") ||
                FileNameExtension.equalsIgnoreCase(".png")
        ) {
            return "image/jpg";
        }
        return "image/jpg";
    }


    /**
     * 列举 指定路径下所有的文件的文件名
     * 如果要列出根路径下的所有文件，path= ""
     *
     * @param path
     * @return
     */
    public List<String> listFileName(String path) {
        List<String> res = new ArrayList<>();
        // 构造ListObjectsRequest请求。
        ListObjectsRequest listObjectsRequest = new ListObjectsRequest(bucketName);

        // 设置prefix参数来获取fun目录下的所有文件。
        listObjectsRequest.setPrefix(path);

        OSS ossClient = new OSSClientBuilder().build(endpoint, accessKeyId, accessKeySecret);

        // 列出文件。
        ObjectListing listing = ossClient.listObjects(listObjectsRequest);
        // 遍历所有文件
        for (OSSObjectSummary objectSummary : listing.getObjectSummaries()) {
            System.out.println(objectSummary.getKey());
        }
        // 关闭OSSClient。
        ossClient.shutdown();
        return res;
    }

    /**
     * 列举文件下所有的文件url信息
     */
    public  List<String> listFileUrl(String path) {
        List<String> res = new ArrayList<>();

        // 构造ListObjectsRequest请求
        ListObjectsRequest listObjectsRequest = new ListObjectsRequest(bucketName);

        // 设置prefix参数来获取fun目录下的所有文件。
        listObjectsRequest.setPrefix(path);

        OSS ossClient = new OSSClientBuilder().build(endpoint, accessKeyId, accessKeySecret);

        // 列出文件。
        ObjectListing listing = ossClient.listObjects(listObjectsRequest);
        // 遍历所有文件。

        for (OSSObjectSummary objectSummary : listing.getObjectSummaries()) {
            //文件访问路径
            Date expiration = new Date(System.currentTimeMillis() + 3600L * 1000 * 24 * 365 * 100);
            URL url = ossClient.generatePresignedUrl(bucketName, objectSummary.getKey(), expiration);
            res.add(url.toString());
        }
        // 关闭OSSClient。
        ossClient.shutdown();
        return res;
    }

    /**
     * 判断文件是否存在
     *
     * @param objectName
     * @return
     */
    public  boolean isFileExist(String objectName) {
        OSS ossClient = new OSSClientBuilder().build(endpoint, accessKeyId, accessKeySecret);

        boolean res = ossClient.doesObjectExist(bucketName, objectName);
        return res;
    }

    /**
     * 通过文件名下载文件
     *
     * @param objectName    要下载的文件名
     * @param localFileName 本地要创建的文件名
     */
    public  void downloadFile(String objectName, String localFileName) {
        OSS ossClient = new OSSClientBuilder().build(endpoint, accessKeyId, accessKeySecret);

        // 下载OSS文件到本地文件。如果指定的本地文件存在会覆盖，不存在则新建。
        ossClient.getObject(new GetObjectRequest(bucketName, objectName), new File(localFileName));
        // 关闭OSSClient。
        ossClient.shutdown();
    }

    /**
     * 删除文件或目录
     *
     * @param objectName
     */
    public  void delelteFile(String objectName) {
        OSS ossClient = new OSSClientBuilder().build(endpoint, accessKeyId, accessKeySecret);

        ossClient.deleteObject(bucketName, objectName);
        ossClient.shutdown();
    }

    /**
     * 批量删除文件或目录
     *
     * @param keys
     */
    public  void deleteFiles(List<String> keys) {
        OSS ossClient = new OSSClientBuilder().build(endpoint, accessKeyId, accessKeySecret);

        // 删除文件。
        DeleteObjectsResult deleteObjectsResult = ossClient.deleteObjects(new DeleteObjectsRequest(bucketName).withKeys(keys));
        List<String> deletedObjects = deleteObjectsResult.getDeletedObjects();

        ossClient.shutdown();
    }
    /**
     * 创建文件夹
     *
     * @param folder
     * @return
     */
    public  String createFolder(String folder) {
        // 文件夹名
        final String keySuffixWithSlash = folder;
        OSS ossClient = new OSSClientBuilder().build(endpoint, accessKeyId, accessKeySecret);

        // 判断文件夹是否存在，不存在则创建
        if (!ossClient.doesObjectExist(bucketName, keySuffixWithSlash)) {
            // 创建文件夹
            ossClient.putObject(bucketName, keySuffixWithSlash, new ByteArrayInputStream(new byte[0]));
            // 得到文件夹名
            OSSObject object = ossClient.getObject(bucketName, keySuffixWithSlash);
            String fileDir = object.getKey();
            ossClient.shutdown();
            return fileDir;
        }

        return keySuffixWithSlash;
    }

}

FdfsUtil：

package org.yian.utils.fdfs;
import com.github.tobato.fastdfs.domain.fdfs.MetaData;
import com.github.tobato.fastdfs.domain.fdfs.StorePath;
import com.github.tobato.fastdfs.domain.proto.storage.DownloadByteArray;
import com.github.tobato.fastdfs.service.FastFileStorageClient;
import org.apache.commons.io.FilenameUtils;
import org.apache.commons.lang3.StringUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.multipart.MultipartFile;

import java.io.*;
import java.nio.charset.Charset;
import java.util.Set;
/**
* @author: duidaima.com
* @create: 2023/3/13
**/
public class FdfsUtil {


    private final FastFileStorageClient storageClient;
    public FdfsUtil(FastFileStorageClient storageClient){
        this.storageClient = storageClient;
    }


    /**
     * MultipartFile类型的文件上传ַ
     * @param file
     * @return
     * @throws IOException
     */
    public String uploadFile(MultipartFile file) throws IOException {
        StorePath storePath = storageClient.uploadFile(file.getInputStream(), file.getSize(),
                FilenameUtils.getExtension(file.getOriginalFilename()), null);
        return getResAccessUrl(storePath);
    }

    /**
     * 普通的文件上传
     *
     * @param file
     * @return
     * @throws IOException
     */
    public String uploadFile(File file) throws IOException {
        FileInputStream inputStream = new FileInputStream(file);
        StorePath path = storageClient.uploadFile(inputStream, file.length(),
                FilenameUtils.getExtension(file.getName()), null);
        return getResAccessUrl(path);
    }

    /**
     * 带输入流形式的文件上传
     *
     * @param is
     * @param size
     * @param fileName
     * @return
     */
    public String uploadFileStream(InputStream is, long size, String fileName) {
        StorePath path = storageClient.uploadFile(is, size, fileName, null);
        return getResAccessUrl(path);
    }

    /**
     * 下载文件，返回字节数组
     * @param group fastdfs分组名
     * @param path  文件路径
     * @return
     */
    public byte[] downloadFile(String group, String path) {
        byte[] bytes = storageClient.downloadFile(group, path, new DownloadByteArray());
        return bytes;
    }

    /**
     * @param fileUrl 文件访问地址,完整url，包含gorup
     * @author duidaima.com
     * @description 下载文件，将文件保存到指定的路径
     */
    public byte[] downloadFileWithFullUrl(String fileUrl) {
        StorePath storePath = StorePath.parseFromUrl(fileUrl);
        byte[] bytes = storageClient.downloadFile(storePath.getGroup(), storePath.getPath(), new DownloadByteArray());
        return bytes;
    }



    /**
     * 将一段文本文件写到fastdfs的服务器上
     *
     * @param content
     * @param fileExtension
     * @return
     */
    public String uploadFile(String content, String fileExtension) {
        byte[] buff = content.getBytes(Charset.forName("UTF-8"));
        ByteArrayInputStream stream = new ByteArrayInputStream(buff);
        StorePath path = storageClient.uploadFile(stream, buff.length, fileExtension, null);
        return getResAccessUrl(path);
    }

    /**
     * 返回文件上传成功后的地址名称ַ
     * @param storePath
     * @return
     */
    private String getResAccessUrl(StorePath storePath) {
        String fileUrl = storePath.getFullPath();
        return fileUrl;
    }

    /**
     * 删除文件
     * @param fileUrl 文件的完整路径
     */
    public void deleteFile(String fileUrl) {
        if (StringUtils.isEmpty(fileUrl)) {
            return;
        }
        StorePath storePath = StorePath.parseFromUrl(fileUrl);
        storageClient.deleteFile(storePath.getGroup(), storePath.getPath());
    }

    /**
     * 上传图片，缩略图, 上传之后会讲图片压缩，变小
     * 访问的时候体积很小，下载还是会下载原来上传的大小
     * @param is
     * @param size
     * @param fileExtName
     * @param metaData
     * @return
     */
    public String uploadImage(InputStream is, long size, String fileExtName, Set<MetaData> metaData) {
        StorePath path = storageClient.uploadImageAndCrtThumbImage(is, size, fileExtName, metaData);
        return getResAccessUrl(path);
    }
}

编写自动配置类

MinioAutoConfig：

package org.yian.config;

import io.minio.MinioClient;
import org.springframework.boot.autoconfigure.condition.ConditionalOnProperty;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.yian.config.properties.MinioProperties;
import org.yian.utils.minio.MinioUtil;
@EnableConfigurationProperties({
        MinioProperties.class
})
public class MinioAutoConfig {

    @Bean
    public MinioUtil minioUtil(MinioProperties minioProperties) {
        /**
         * 官网给出的 构造方法
         * 此类是 客户端进行操作的类
         */
        MinioClient minioClient =
                MinioClient.builder()
                        .credentials(minioProperties.getAccessKey(), minioProperties.getSecretKey())
                        .endpoint(minioProperties.getEndpoint(),minioProperties.getPort(),minioProperties.isSecure())
                        .build();
        return new MinioUtil(minioClient,minioProperties);
    }
}

OssProperties：

package org.yian.config;

import org.springframework.boot.autoconfigure.condition.ConditionalOnProperty;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.yian.config.properties.OssProperties;
import org.yian.utils.oss.OssUtil;

@EnableConfigurationProperties({
        OssProperties.class
})
public class OssAutoConfig {

    @Bean
    public OssUtil ossUtil(OssProperties ossProperties) {
        return new OssUtil(ossProperties.getEndpoint(),ossProperties.getAccessKey(),
                ossProperties.getSecret(),ossProperties.getBucketName());
    }



}

FdfsAutoConfig：

package org.yian.config;

import com.github.tobato.fastdfs.service.FastFileStorageClient;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.yian.utils.fdfs.FdfsUtil;

import javax.annotation.Resource;

@EnableConfigurationProperties
public class FdfsAutoConfig {
    @Resource
    private FastFileStorageClient storageClient;


    @Bean
    public FdfsUtil fdfsUtil(){
        return new FdfsUtil(storageClient);
    }
}

编写spring.factories

org.springframework.boot.autoconfigure.EnableAutoConfiguration=\
org.yian.config.MinioAutoConfig,\
org.yian.config.OssAutoConfig,\
org.yian.config.FdfsAutoConfig

打包成jar

方式一：idea内直接install

方式二(需要管理员权限)：

mvn install:install-file "-DgroupId=org.yian" "-DartifactId=file-store-start" "-Dversion=1.0-SNAPSHOT" "-Dfile=D:\local\file-store-start\target\file-store-start-1.0-SNAPSHOT.jar" "-Dpackaging=jar"

新建一个maven项目
引入pom依赖

  <dependency>
      <groupId>org.yian</groupId>
      <artifactId>file-store-starter</artifactId>
      <version>1.0-SNAPSHOT</version>
  </dependency>

配置类

 minio:
  # 访问的url
  endpoint: http://192.168.5.128
  # API的端口
  port: 9001
  # 秘钥
  accessKey: Oe***************SrL
  secretKey: F8***************r9KgN2i5
  secure: false
  bucket-name: test # 桶名 我这是给出了一个默认桶名
  image-size: 10485760 # 我在这里设定了 图片文件的最大大小
  file-size: 1073741824 # 此处是设定了文件的最大大小

oss:
  #yourEndpoint填写Bucket所在地域对应的Endpoint。以华东1（杭州）为例，Endpoint填写为https://oss-cn-hangzhou.aliyuncs.com
  endpoint: https://oss-cn-beijing.aliyuncs.com
  #阿里云账号AccessKey拥有所有API的访问权限，风险很高。强烈建议您创建并使用RAM用户进行API访问或日常运维，请登录RAM控制台创建RAM用户。
  accessKey: LTAI***********PYtEZ
  #your secret
  secret: D6F******************97eC
  #存储空间是您用于存储对象（Object）的容器，所有的对象都必须隶属于某个存储空间
  bucketName: yian

fdfs:
  so-timeout: 2500 # 读取时间
  connect-timeout: 600 # 连接超时时间
  pool:
    max-total: 200   # 连接池最大数量
    max-total-per-key: 50  # 单个tracker最大连接数
    max-wait-millis: 5000 # 连接耗尽最大等待时间 毫秒
  tracker-list:
    - 192.168.5.128:22122

测试类

package org.example.controller;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;
import org.yian.utils.fdfs.FdfsUtil;
import org.yian.utils.minio.MinioUtil;
import org.yian.utils.oss.OssUtil;

import javax.annotation.Resource;
import java.io.File;
import java.io.IOException;

@RestController
public class TestController {

    @Resource
    private MinioUtil minioUtil;

    @Resource
    private OssUtil ossUtil;

    @Resource
    private FdfsUtil fdfsUtil;

    @GetMapping("minio")
    public Boolean minio(){
        boolean minio = minioUtil.bucketExists("test");
        return minio;
    }

    @GetMapping("oss")
    public Boolean oss(){
        boolean oss = ossUtil.isFileExist("2023-03-13/yian.jpg");
        return oss;
    }

    @GetMapping("fdfs")
    public String fdfs() throws IOException {
        String fdfs = fdfsUtil.uploadFile(new File("test.txt"));
        return fdfs;
    }
}

如果启动不想引入可以在启动类移除，比如@SpringBootApplication(exclude ={MinioAutoConfig.class}

 用户评论

JAVA编程
 249 成员 |  1053 话题
+我要提问 +随便写写

可能感兴趣的话题

如何在Spring项目中使用sensitive-word框架实现敏感词过滤？

Spring团队宣布：RestTemplate将在Framework 7.0中进入弃用计划

Java Agent-可以让你在不重启应用的情况下对运行中的JVM进行字节码增强

我就是不喜欢写@Test，怎么了？
