打开项目文件夹中“Pages”文件夹下的“ Index.cshtml.cs ”页面。并在此文件中定义服务器端代码以生成 PDF 文件,代码如下所示://Define Environment variable to access web root folder
private IWebHostEnvironment Environment;
// 堆代码 duidaima.com
public IndexModel(ILogger<IndexModel> logger, IWebHostEnvironment _environment)
{
_logger = logger;
Environment = _environment;
CreatePDF();
}
接下来,对第4步的 CreatePDF()方法进行详细地编写:public void CreatePDF()
{
const int FontSize = 12;
//Define an instance of GcPdfDocument
var doc = new GcPdfDocument();
//Add a new page
var page = doc.Pages.Add();
var g = page.Graphics;
//Initialize TextLayout to render text
var tl = g.CreateTextLayout();
//Add an image to PDF document
var img = Image.FromFile(Path.Combine("Resources", "ImagesBis", "2020-website-gcdocs-headers_tall.png"));
var rc = page.Bounds;
rc.Height *= 0.65f;
g.DrawImage(img, rc, null, ImageAlign.StretchImage);
//Define text format settings
var ip = new PointF(48, 72);
var font = Font.FromFile(Path.Combine("Resources", "Fonts", "OpenSans-Regular.ttf"));
var tfCap = new TextFormat() { Font = font, FontSize = FontSize * 1.6f, ForeColor = Color.White };
var tf = new TextFormat() { Font = font, FontSize = FontSize, ForeColor = Color.White };
tl.MaxWidth = 72 * 5;
// Add Header:
tl.AppendLine("Fast, Efficient Document APIs for .NET 5 and Java Applications", tfCap);
tl.AppendLine(tfCap);
tl.AppendLine("Take total control of your documents with ultra-fast, low-footprint APIs for enterprise apps.", tf);
tl.AppendLine(tf);
g.DrawTextLayout(tl, ip);
// Add Bullet list:
ip.Y += tl.ContentHeight;
tl.Clear();
const string bullet = "\x2022\x2003";
tl.FirstLineIndent = -g.MeasureString(bullet, tf).Width;
tl.ParagraphSpacing += 4;
tl.Append(bullet, tf);
tl.AppendLine("Generate, load, edit, save XLSX spreadsheets, PDF, Images, and DOCX files using C# .NET, VB.NET, or Java", tf);
tl.Append(bullet, tf);
tl.AppendLine("View, edit, print, fill and submit documents in JavaScript PDF Viewer and PDF Editor.", tf);
tl.Append(bullet, tf);
tl.AppendLine("Compatible on Windows, macOS, and Linux", tf);
tl.Append(bullet, tf);
tl.AppendLine("No dependencies on Excel, Word, or Acrobat", tf);
tl.Append(bullet, tf);
tl.AppendLine("Deploy to a variety of cloud-based services, including Azure, AWS, and AWS Lambda", tf);
tl.Append(bullet, tf);
tl.AppendLine("Product available individually or as a bundle", tf);
//Render text
g.DrawTextLayout(tl, ip);
//Save the document to web root folder
doc.Save(Path.Combine(Environment.WebRootPath, "sample.pdf"));
}
实现效果如下所示(用Adobe打开):
npm install @grapecity/gcpdfviewer在Index.cshtml 文件中添加以下代码:
<div id="root" style="height:600px;"></div>
<script src="~/node_modules/@@grapecity/gcpdfviewer/gcpdfviewer.js"></script>
<script>
window.onload = function () {
var viewer = new GcPdfViewer("#root", { /* Specify options here */ }
);
viewer.addDefaultPanels();
viewer.open("sample.pdf");
}
</script>

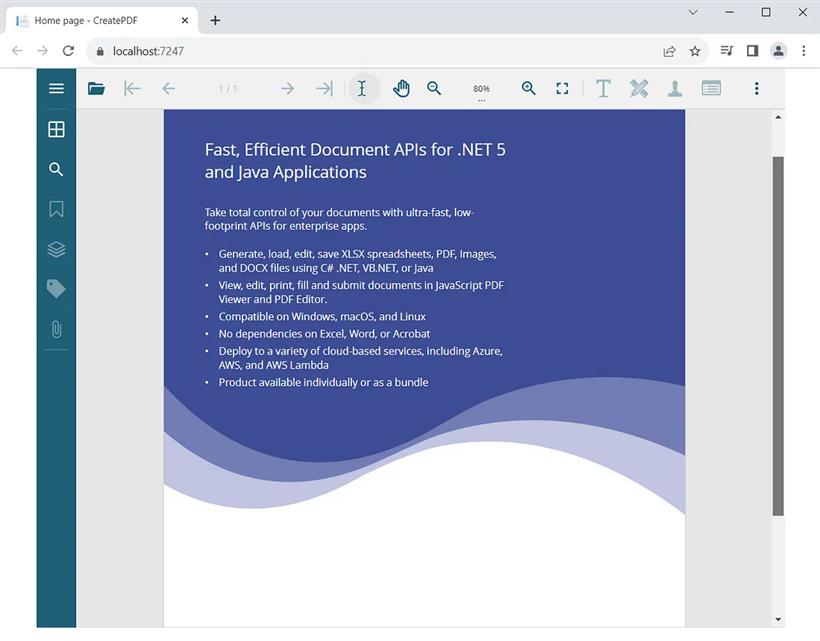

实现效果:
