一：背景
1. 讲故事
这个问题源于给训练营里的一位朋友分析的卡死dump，在分析期间我需要知道某一个异步方法的调用栈，但程序是 .framework 4.8 ，没有sos后续版本独有的 !dumpasync 命令，所以这就比较搞了，但转念一想，既然 !dumpasync 能把调用栈搞出来，按理说我也可以给他捞出来，所以就有了此篇。

二：异步调用栈研究
1. 一个简单的案例
为了模拟的真实一点，搞一个简单的三层架构，最后在 DAL 层的 ReadAsync 之后给它断住，参考代码如下：
namespace Example_18_1_1.UI
{
    internalclassProgram
    {
        static void Main(string[] args)
        {
            Task.Run(() =>
            {
                var task = GetCustomersAsync();

                Console.WriteLine(task.IsCompleted);
            });
            Console.ReadLine();
        }
        static async Task GetCustomersAsync()
        {
            string connectionString = @"Server=(localdb)\MyInstance;Database=MyDatabase;Integrated Security=true;";
            try
            {
                Console.WriteLine("Starting async database query...");
                // 堆代码 duidaima.com
                // 初始化服务
                var customerService = new CustomerService(connectionString);
                // 获取并显示客户数据
                var customers = await customerService.GetCustomersForDisplayAsync();
                foreach (var customer in customers)
                {
                    Console.WriteLine($"Customer: ID={customer.Id}, Name={customer.Name}");
                }
                Console.WriteLine("Query completed successfully.");
            }
            catch (Exception ex)
            {
                Console.WriteLine($"Error: {ex.Message}");
            }
        }
    }
}
namespaceExample_18_1_1.BLL
{
    publicclassCustomerService
    {
        privatereadonly CustomerRepository _repository;
        public CustomerService(string connectionString)
        {
            _repository = new CustomerRepository(connectionString);
        }
        publicasync Task<IEnumerable<Customer>> GetCustomersForDisplayAsync()
        {
            // 这里可以添加业务逻辑，如验证、转换等
            var customers = await _repository.GetTop10CustomersAsync();

            // 示例业务逻辑：确保名称不为null
            foreach (var customer in customers)
            {
                customer.Name ??= "Unknown";
            }
            return customers;
        }
    }
}

namespaceExample_18_1_1.DAL
{
    publicclassCustomerRepository
    {
        privatereadonlystring _connectionString;
        public CustomerRepository(string connectionString)
        {
            _connectionString = connectionString;
        }
        publicasync Task<IEnumerable<Customer>> GetTop10CustomersAsync()
        {
            var customers = new List<Customer>();
            awaitusing (var connection = new SqlConnection(_connectionString))
            {
                await connection.OpenAsync();
                var command = new SqlCommand("SELECT TOP 10 * FROM Customers", connection);
                awaitusing (var reader = await command.ExecuteReaderAsync())
                {
                    while (await reader.ReadAsync())
                    {
                        customers.Add(new Customer
                        {
                            Id = Convert.ToInt32(reader["Id"]),
                            Name = Convert.ToString(reader["Name"])
                        });
                        Debugger.Break();
                    }
                }
            }
            return customers;
        }
    }
    publicclassCustomer
    {
        publicint Id { get; set; }
        publicstring Name { get; set; }
    }
}
从代码流程看，异步调用链是这样的 GetCustomersAsync -> GetCustomersForDisplayAsync -> GetTop10CustomersAsync 一个过程，在程序中断之后，我们用 WinDbg 附加，使用 !clrstack 观察当前调用栈。
0:017> !clrstack
OS Thread Id: 0x3118 (17)
        Child SP               IP Call Site
000000ABD6CBEAF8 00007ffeb1e61db2 [HelperMethodFrame: 000000abd6cbeaf8] System.Diagnostics.Debugger.BreakInternal()
000000ABD6CBEC00 00007ffdf818a91a System.Diagnostics.Debugger.Break() [/_/src/coreclr/System.Private.CoreLib/src/System/Diagnostics/Debugger.cs @ 18]
000000ABD6CBEC30 00007ffd9915079d Example_18_1_1.DAL.CustomerRepository+d__2.MoveNext() [D:\skyfly\18.20220727\src\Example\Example_18_1_1\Program.cs @ 115]
000000ABD6CBEE50 00007ffdf827f455 System.Runtime.CompilerServices.AsyncTaskMethodBuilder`1+AsyncStateMachineBox`1[[System.__Canon, System.Private.CoreLib],[System.__Canon, System.Private.CoreLib]].ExecutionContextCallback(System.Object) [/_/src/libraries/System.Private.CoreLib/src/System/Runtime/CompilerServices/AsyncTaskMethodBuilderT.cs @ 286]
000000ABD6CBEE80 00007ffdf808dde9 System.Threading.ExecutionContext.RunInternal(System.Threading.ExecutionContext, System.Threading.ContextCallback, System.Object) [/_/src/libraries/System.Private.CoreLib/src/System/Threading/ExecutionContext.cs @ 183]
000000ABD6CBEEF0 00007ffdf827f593 System.Runtime.CompilerServices.AsyncTaskMethodBuilder`1+AsyncStateMachineBox`1[[System.__Canon, System.Private.CoreLib],[System.__Canon, System.Private.CoreLib]].MoveNext(System.Threading.Thread) [/_/src/libraries/System.Private.CoreLib/src/System/Runtime/CompilerServices/AsyncTaskMethodBuilderT.cs @ 324]
000000ABD6CBEF60 00007ffdf827f4ec System.Runtime.CompilerServices.AsyncTaskMethodBuilder`1+AsyncStateMachineBox`1[[System.__Canon, System.Private.CoreLib],[System.__Canon, System.Private.CoreLib]].MoveNext() [/_/src/libraries/System.Private.CoreLib/src/System/Runtime/CompilerServices/AsyncTaskMethodBuilderT.cs @ 302]
000000ABD6CBEF90 00007ffdf80a9a06 System.Threading.Tasks.AwaitTaskContinuation.RunOrScheduleAction(System.Runtime.CompilerServices.IAsyncStateMachineBox, Boolean) [/_/src/libraries/System.Private.CoreLib/src/System/Threading/Tasks/TaskContinuation.cs @ 795]
000000ABD6CBEFF0 00007ffdf80a48eb System.Threading.Tasks.Task.RunContinuations(System.Object) [/_/src/libraries/System.Private.CoreLib/src/System/Threading/Tasks/Task.cs @ 3374]
000000ABD6CBF0D0 00007ffdf80a4866 System.Threading.Tasks.Task.FinishContinuations() [/_/src/libraries/System.Private.CoreLib/src/System/Threading/Tasks/Task.cs @ 3350]
000000ABD6CBF110 00007ffdf8251350 System.Threading.Tasks.Task`1[[System.__Canon, System.Private.CoreLib]].TrySetResult(System.__Canon) [/_/src/libraries/System.Private.CoreLib/src/System/Threading/Tasks/Future.cs @ 400]
000000ABD6CBF160 00007ffdf8254fc3 System.Threading.Tasks.UnwrapPromise`1[[System.__Canon, System.Private.CoreLib]].TrySetFromTask(System.Threading.Tasks.Task, Boolean)
000000ABD6CBF1C0 00007ffdf825515b System.Threading.Tasks.UnwrapPromise`1[[System.__Canon, System.Private.CoreLib]].ProcessInnerTask(System.Threading.Tasks.Task) [/_/src/libraries/System.Private.CoreLib/src/System/Threading/Tasks/Task.cs @ 6940]
000000ABD6CBF200 00007ffdf8254ead System.Threading.Tasks.UnwrapPromise`1[[System.__Canon, System.Private.CoreLib]].ProcessCompletedOuterTask(System.Threading.Tasks.Task)
000000ABD6CBF240 00007ffdf8254d1b System.Threading.Tasks.UnwrapPromise`1[[System.__Canon, System.Private.CoreLib]].Invoke(System.Threading.Tasks.Task) [/_/src/libraries/System.Private.CoreLib/src/System/Threading/Tasks/Task.cs @ 6802]
000000ABD6CBF280 00007ffdf80a4e11 System.Threading.Tasks.Task.RunOrQueueCompletionAction(System.Threading.Tasks.ITaskCompletionAction, Boolean)
000000ABD6CBF2C0 00007ffdf80a4c0a System.Threading.Tasks.Task.RunContinuations(System.Object) [/_/src/libraries/System.Private.CoreLib/src/System/Threading/Tasks/Task.cs @ 3392]
000000ABD6CBF3A0 00007ffdf80a4866 System.Threading.Tasks.Task.FinishContinuations() [/_/src/libraries/System.Private.CoreLib/src/System/Threading/Tasks/Task.cs @ 3350]
000000ABD6CBF3E0 00007ffdf80a2e9f System.Threading.Tasks.Task.FinishStageThree() [/_/src/libraries/System.Private.CoreLib/src/System/Threading/Tasks/Task.cs @ 2125]
000000ABD6CBF410 00007ffdf80a2d0b System.Threading.Tasks.Task.FinishStageTwo() [/_/src/libraries/System.Private.CoreLib/src/System/Threading/Tasks/Task.cs @ 2095]
000000ABD6CBF460 00007ffdf80a33f6 System.Threading.Tasks.Task.ExecuteWithThreadLocal(System.Threading.Tasks.Task ByRef, System.Threading.Thread) [/_/src/libraries/System.Private.CoreLib/src/System/Threading/Tasks/Task.cs @ 2350]
000000ABD6CBF500 00007ffdf80a3293 System.Threading.Tasks.Task.ExecuteEntryUnsafe(System.Threading.Thread) [/_/src/libraries/System.Private.CoreLib/src/System/Threading/Tasks/Task.cs @ 2271]
000000ABD6CBF540 00007ffdf80a323a System.Threading.Tasks.Task.ExecuteFromThreadPool(System.Threading.Thread) [/_/src/libraries/System.Private.CoreLib/src/System/Threading/Tasks/Task.cs @ 2262]
000000ABD6CBF570 00007ffdf80969df System.Threading.ThreadPoolWorkQueue.Dispatch()
000000ABD6CBF610 00007ffdf809e566 System.Threading.PortableThreadPool+WorkerThread.WorkerThreadStart() [/_/src/libraries/System.Private.CoreLib/src/System/Threading/PortableThreadPool.WorkerThread.cs @ 107]
000000ABD6CBF730 00007ffdf8082f0f System.Threading.Thread.StartCallback() [/_/src/coreclr/System.Private.CoreLib/src/System/Threading/Thread.CoreCLR.cs @ 105]
000000ABD6CBF9C0 00007ffdf8ccbde3 [DebuggerU2MCatchHandlerFrame: 000000abd6cbf9c0]
卦中真的是眼花缭乱，找瞎了眼也没找到调用链上的三个方法名，只有一个 Example_18_1_1.DAL.CustomerRepository+d__2 状态机类，经过 ILSpy反编译才能勉强的看到是 GetTop10CustomersAsync 方法，截图如下：

所以sos为了让调试者免去这个痛苦，新增了 !dumpasync 命令。
0:017> !dumpasync
STACK 1
0000028b00029338 00007ffd993d1e00 (-1) Example_18_1_1.DAL.CustomerRepository+<GetTop10CustomersAsync>d__2 @ 7ffd991502a0
  0000028b00029438 00007ffd993d3290 (0) Example_18_1_1.BLL.CustomerService+<GetCustomersForDisplayAsync>d__2 @ 7ffd9914d6c0
    0000028b00029550 00007ffd993d3fe8 (0) Example_18_1_1.UI.Program+<GetCustomersAsync>d__1 @ 7ffd9914b8f0
虽然能以 屏蔽外部代码 的方式显示出了异步调用栈，但这个sos 命令是 .netcore 独有的，所以作为高级调试者，我们必须具有手工绘制的能力。

2. 如何手工绘制
要想手工绘制，需要了解异步状态机的内部机制，即子函数和父函数是通过 m_continuationObject 字段串联的，去年我写过一篇关于异步方法串联的文章，可以参考下 (https://www.cnblogs.com/huangxincheng/p/18662162)[聊一聊 C#异步 任务延续的三种底层玩法]，这里就不具体说了，用一张图来表示吧。

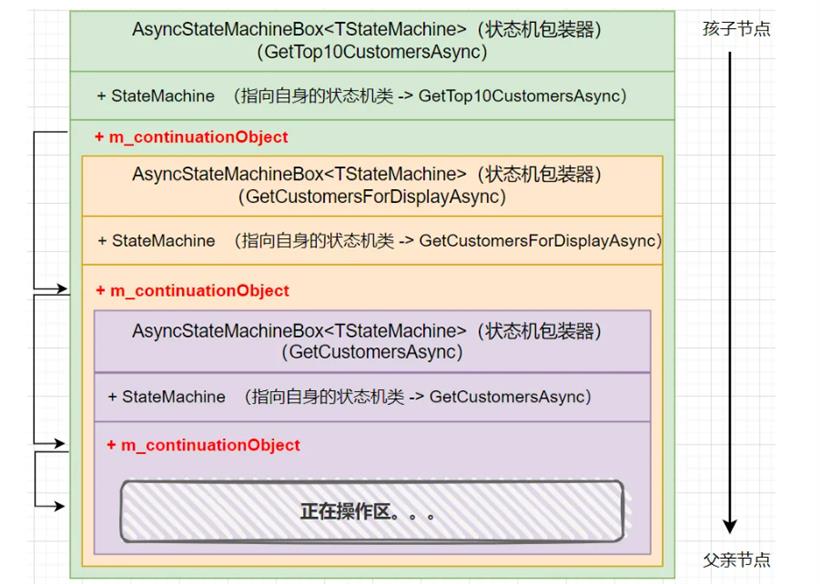

本质上来说就是 Box 之间形成了一个跨线程的由m_continuationObject串联出的单链表，有了思路之后，我们开始验证吧，使用 !dso 找到头节点 box。
0:017> !dso
OS Thread Id: 0x3118 (17)
          SP/REG           Object Name
             rbx     028b00029338 System.Runtime.CompilerServices.AsyncTaskMethodBuilder<System.Collections.Generic.IEnumerable<Example_18_1_1.DAL.Customer>>+AsyncStateMachineBox<Example_18_1_1.DAL.CustomerRepository+<GetTop10CustomersAsync>d__2>
....

0:017> !dumpobj /d 28b00029338
Name:        System.Runtime.CompilerServices.AsyncTaskMethodBuilder`1+AsyncStateMachineBox`1[[System.Collections.Generic.IEnumerable`1[[Example_18_1_1.DAL.Customer, Example_18_1_1]], System.Private.CoreLib],[Example_18_1_1.DAL.CustomerRepository+<GetTop10CustomersAsync>d__2, Example_18_1_1]]
Fields:
              MT    Field   Offset                 Type VT     Attr            Value Name
...
00007ffd99125690  4000db9       20        System.Object  0 instance 0000028b00029438 m_continuationObject
...

0:017> !DumpObj /d 0000028b00029438
Name:        System.Runtime.CompilerServices.AsyncTaskMethodBuilder`1+AsyncStateMachineBox`1[[System.Collections.Generic.IEnumerable`1[[Example_18_1_1.DAL.Customer, Example_18_1_1]], System.Private.CoreLib],[Example_18_1_1.BLL.CustomerService+<GetCustomersForDisplayAsync>d__2, Example_18_1_1]]
Fields:
              MT    Field   Offset                 Type VT     Attr            Value Name
...
00007ffd99125690  4000db9       20        System.Object  0 instance 0000028b00029550 m_continuationObject
...

0:017> !DumpObj /d 0000028b00029550
Name:        System.Runtime.CompilerServices.AsyncTaskMethodBuilder`1+AsyncStateMachineBox`1[[System.Threading.Tasks.VoidTaskResult, System.Private.CoreLib],[Example_18_1_1.UI.Program+<GetCustomersAsync>d__1, Example_18_1_1]]
Fields:
              MT    Field   Offset                 Type VT     Attr            Value Name
...
00007ffd99125690  4000db9       20        System.Object  0 instance 0000000000000000 m_continuationObject
...
00007ffd99125708  4001337       48       System.__Canon  0 instance 0000028b0000e7f8 StateMachine
...
上面三个 m_continuationObject 值即是 !dumpasync 输出的结果，最后一个 m_continuationObject=null  说明为异步执行流的最后一个节点，流程正在这里没出来，可以把这个异步状态机给解包出来，即卦中的 StateMachine 字段，输出如下：
0:017> !do 0000028b0000e7f8
Name:        Example_18_1_1.BLL.CustomerService+<GetCustomersForDisplayAsync>d__2
Fields:
              MT    Field   Offset                 Type VT     Attr            Value Name
00007ffd991c94b0  4000018       30         System.Int32  1 instance                0 <>1__state
00007ffd9924fca0  4000019       38 ...Private.CoreLib]]  1 instance 0000028b0000e830 <>t__builder
00007ffd99247298  400001a        8 ...L.CustomerService  0 instance 0000028b0000e7c8 <>4__this
00007ffd992453b0  400001b       10 ... Example_18_1_1]]  0 instance 0000000000000000 <customers>5__1
00007ffd992453b0  400001c       18 ... Example_18_1_1]]  0 instance 0000000000000000 <>s__2
00007ffd99246d60  400001d       20 ... Example_18_1_1]]  0 instance 0000000000000000 <>s__3
00007ffd99245338  400001e       28 ..._1_1.DAL.Customer  0 instance 0000000000000000 <customer>5__4
00007ffd99245448  400001f       40 ...Private.CoreLib]]  1 instance 0000028b0000e838 <>u__1

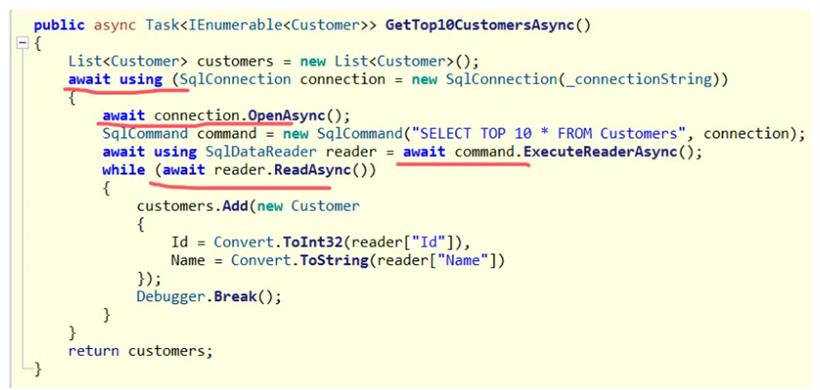

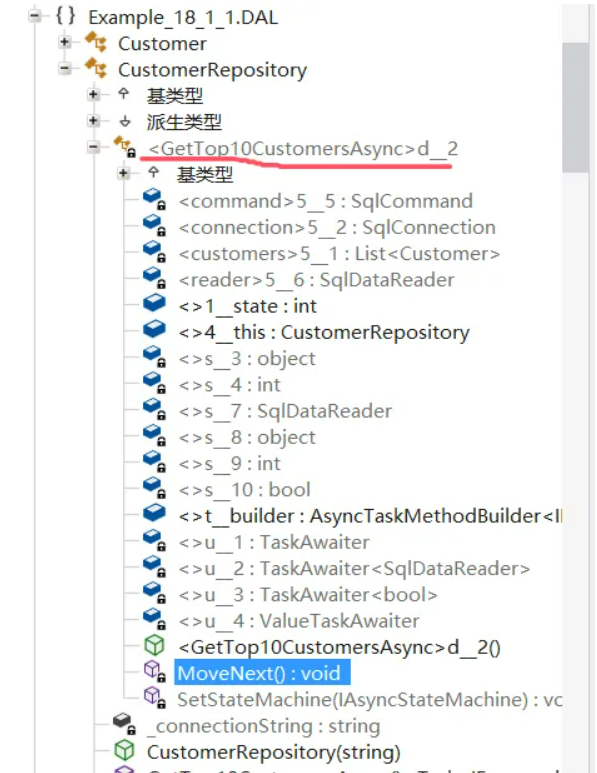

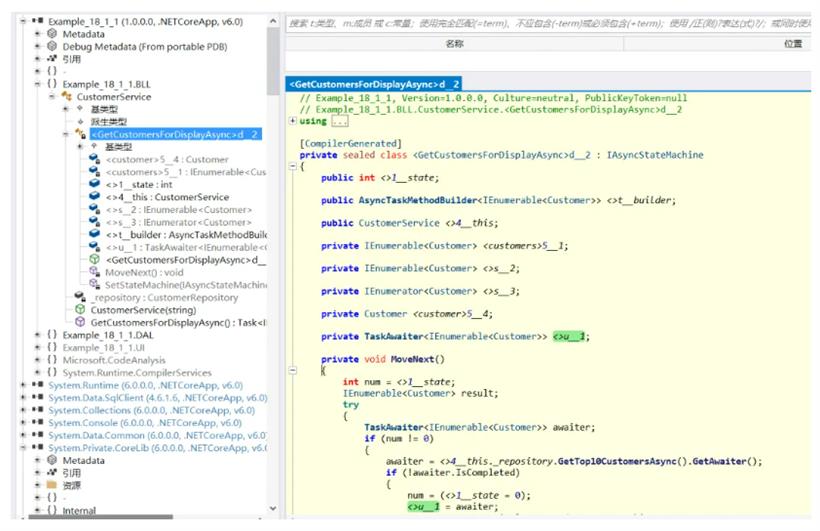

再配上 ILSpy 反编译出来的状态机代码，截图如下：

可以根据这里面的字段赋值情况来推测当前正执行哪一个阶段。

3. 父节点如何找到子节点
刚才我们是通过 子节点 -> 父节点 寻找法，在真实的dump分析中，可能还会存在反向的情况，即 父节点 -> 子节点 寻找法，但父节点寻找目标子节点的过程中会存在多条链路，比如 GetTop10CustomersAsync 方法中存在五个 await 就对应着 4条链路。

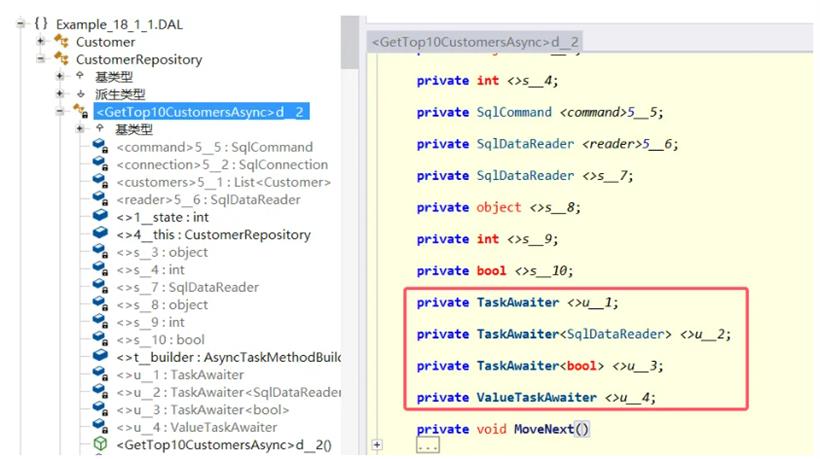

用状态机的话术就是下面的4个 <>u__xxxx。

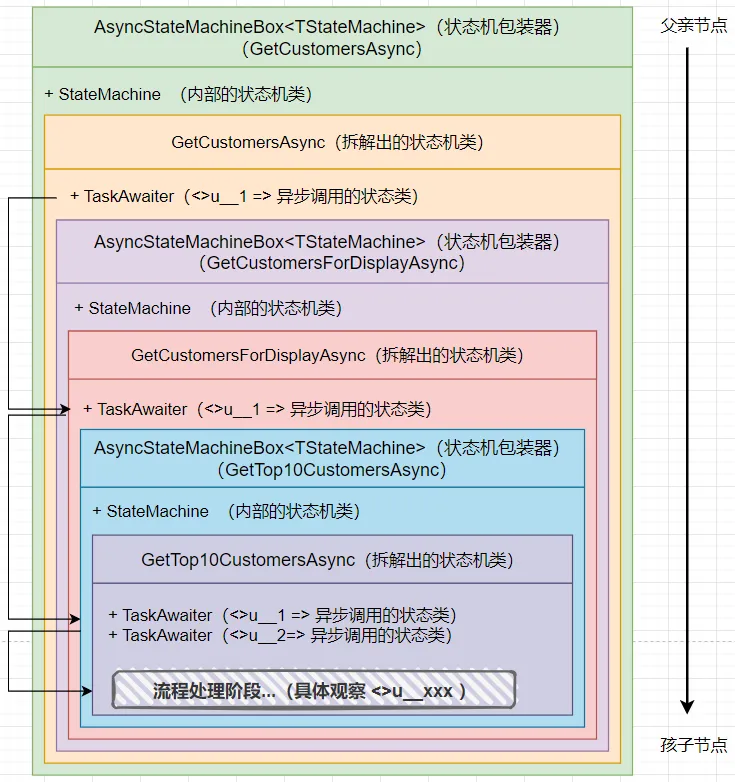

可能有些朋友还是有点懵，没关系，我也绘制一张图。

最后通过 windbg 来验证一下。
0:017> !do0000028b00029550
Name:        System.Runtime.CompilerServices.AsyncTaskMethodBuilder`1+AsyncStateMachineBox`1[[System.Threading.Tasks.VoidTaskResult, System.Private.CoreLib],[Example_18_1_1.UI.Program+<GetCustomersAsync>d__1, Example_18_1_1]]
Fields:
              MT    Field   Offset                 Type VT     Attr            Value Name
00007ffd99125708  4001337       48       System.__Canon  0 instance 0000028b0000de10 StateMachine

0:017> !DumpObj /d 0000028b0000de10
Name:        Example_18_1_1.UI.Program+<GetCustomersAsync>d__1
Fields:
              MT    Field   Offset                 Type VT     Attr            Value Name
00007ffd99245448  400002b       50 ...Private.CoreLib]]  1 instance 0000028b0000de60 <>u__1

0:017> !DumpVC /d 00007ffd99245448 0000028b0000de60
Name:        System.Runtime.CompilerServices.TaskAwaiter`1[[System.Collections.Generic.IEnumerable`1[[Example_18_1_1.DAL.Customer, Example_18_1_1]], System.Private.CoreLib]]
Fields:
              MT    Field   Offset                 Type VT     Attr            Value Name
00007ffd99247db8  400139e        0 ...Private.CoreLib]]  0 instance 0000028b00029438 m_task

0:017> !DumpObj /d 0000028b00029438
Name:        System.Runtime.CompilerServices.AsyncTaskMethodBuilder`1+AsyncStateMachineBox`1[[System.Collections.Generic.IEnumerable`1[[Example_18_1_1.DAL.Customer, Example_18_1_1]], System.Private.CoreLib],[Example_18_1_1.BLL.CustomerService+<GetCustomersForDisplayAsync>d__2, Example_18_1_1]]
Fields:
              MT    Field   Offset                 Type VT     Attr            Value Name
00007ffd99125708  4001337       48       System.__Canon  0 instance 0000028b0000e7f8 StateMachine

0:017> !DumpObj /d 0000028b0000e7f8
Name:        Example_18_1_1.BLL.CustomerService+<GetCustomersForDisplayAsync>d__2
00007ffd99245448  400001f       40 ...Private.CoreLib]]  1 instance 0000028b0000e838 <>u__1

0:017> !DumpVC /d 00007ffd99245448 0000028b0000e838
Name:        System.Runtime.CompilerServices.TaskAwaiter`1[[System.Collections.Generic.IEnumerable`1[[Example_18_1_1.DAL.Customer, Example_18_1_1]], System.Private.CoreLib]]
Fields:
              MT    Field   Offset                 Type VT     Attr            Value Name
00007ffd99247db8  400139e        0 ...Private.CoreLib]]  0 instance 0000028b00029338 m_task

0:017> !DumpObj /d 0000028b00029338
Name:        System.Runtime.CompilerServices.AsyncTaskMethodBuilder`1+AsyncStateMachineBox`1[[System.Collections.Generic.IEnumerable`1[[Example_18_1_1.DAL.Customer, Example_18_1_1]], System.Private.CoreLib],[Example_18_1_1.DAL.CustomerRepository+<GetTop10CustomersAsync>d__2, Example_18_1_1]]
MethodTable: 00007ffd993d1e00
EEClass:     00007ffd993c1810
Tracked Type: false
Size:        96(0x60) bytes
File:        C:\Program Files\dotnet\shared\Microsoft.NETCore.App\6.0.36\System.Private.CoreLib.dll
Fields:
              MT    Field   Offset                 Type VT     Attr            Value Name
00007ffd99125708  4001337       48       System.__Canon  0 instance 0000028b0000e870 StateMachine

0:017> !DumpObj /d 0000028b0000e870
Name:        Example_18_1_1.DAL.CustomerRepository+<GetTop10CustomersAsync>d__2
Fields:
              MT    Field   Offset                 Type VT     Attr            Value Name
...
00007ffd992602f0  4000014       60 ...vices.TaskAwaiter  1 instance 0000028b0000e8d0 <>u__1
00007ffd99267a60  4000015       68 ....Data.SqlClient]]  1 instance 0000028b0000e8d8 <>u__2
00007ffd99260450  4000016       70 ...Private.CoreLib]]  1 instance 0000028b0000e8e0 <>u__3
00007ffd99260ae8  4000017       78 ....ValueTaskAwaiter  1 instance 0000028b0000e8e8 <>u__4
4. 有没有更快捷的方式

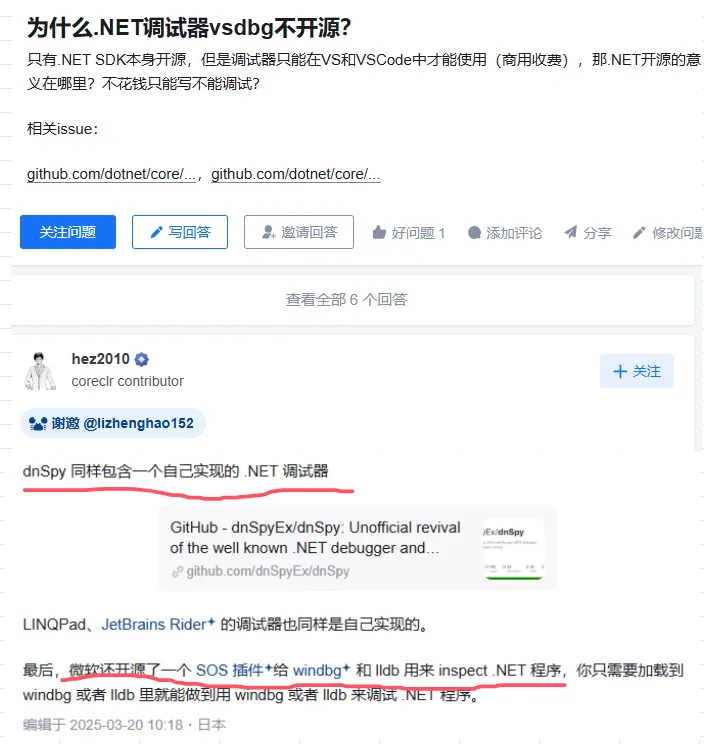

手工绘制虽然是兜底方案，但每次都要这样搞也确实太累，所以最近我在思考有没有更好的方式，好巧不巧，昨天在知乎上刷到了这样的一篇文章，hez2010大佬的话突然点醒了我，截图如下：

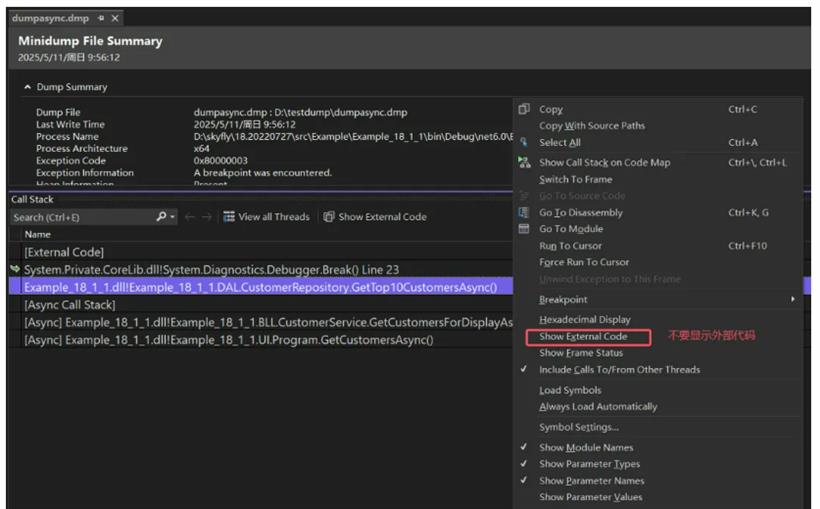

哈哈，点醒了我什么呢？即 sos 解析托管代码的能力远不如官方的 Visual Studio，毕竟后者才是全球最专业的托管代码调试器，将生成好的dump丢到 VS 中，在 Stack 或者 Parallel Stack 中一定要屏蔽 外部代码(External Code) ，否则海量的 AsyncTaskMethodBuilder 和 MoveNext 会淹死我们，截图如下：

三：总结
手工绘制异步调用栈需要对异步的底层构建有一个清晰的认识，调试师是痛苦的，要想进阶为资深，需要日积月累的底层知识沉淀，在自我学习的过程中如果没有无数次的在绝望中寻找希望的能力，很容易从入门到放弃。。。
